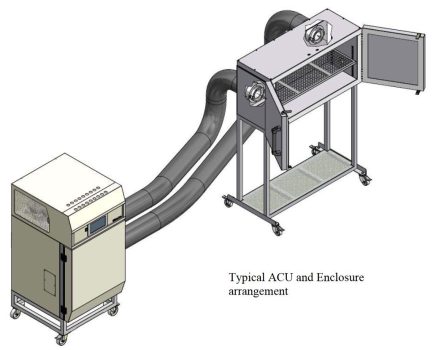

Compact Modular Enclosure for use with separate Slimline-ACU

Custom Enclosures enable a controlled thermal environment to be maintained around product assemblies which cannot be accommodated in a stand-alone chamber (e.g. if they need to be tested as part of a larger assembly).

The thermal control is normally provided by circulating air from a separate Air Conditioning Unit (ACU) - see our ACU brochures for details.

Our latest MODULAR design is suitable for many requirements. This consists of clip-together insulated panels, sized to fit the application. This method allows panels to be easily removed for access to the product assembly for set-up, adjustment, and inspection purposes.

Optional features such as inspection windows, and insulated ports for shafts, pipes, and electrical connections are added as required.

Sharetree engineers have extensive experience of designing optimum enclosure solutions - talk to us for FREE APPLICATION ADVICE.

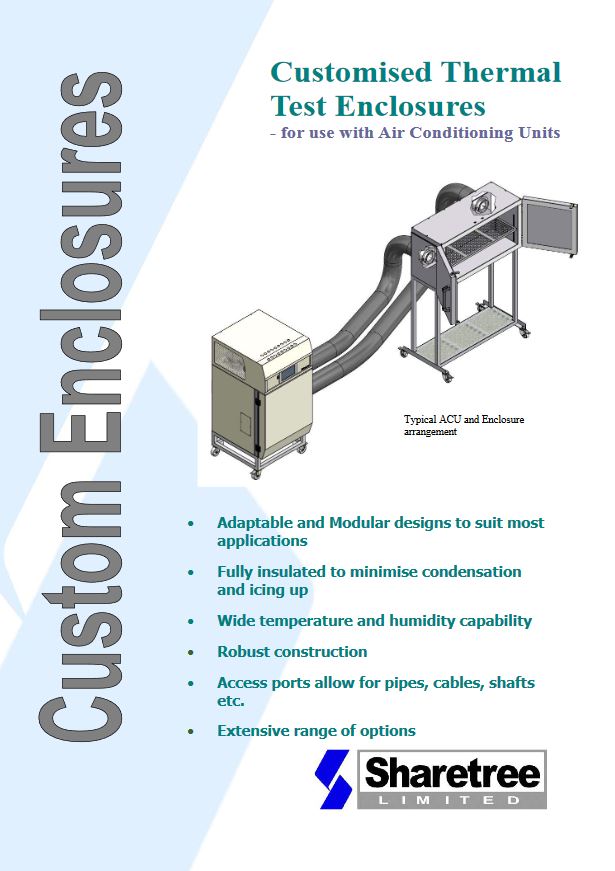

Customised Thermal Test Enclosures - for use with Air Conditioning Units



  • Adaptable and Modular designs to suit most applications
  • Fully insulated to minimise condensationand icing up
  • Wide temperature and humidity capability
  • Robust construction
  • Access ports allow for pipes, cables, shafts etc.
  • Extensive range of options

Sharetree Custom Enclosures enable a controlled thermal environment to be maintained around product assemblies which cannot be accommodated in a stand-alone chamber (e.g. if they need to be tested as part of a larger assembly).

The thermal control is normally provided by circulating air from a separate Air Conditioning Unit (ACU) - see our ACU brochures for details.

Our latest MODULAR design is suitable for many requirements. This consists of clip-together insulated panels, sized to fit the application. This method allows panels to be easily removed for access to the product assembly for set-up, adjustment, and inspection purposes.

Optional features such as inspection windows, and insulated ports for shafts, pipes, and electrical connections are added as required.

Sharetree engineers have extensive experience of designing optimum enclosure solutions - talk to us for FREE APPLICATION ADVICE.

Standard options (additional cost)
CP5050 mm diameter cable portIncludes silicone rubber bung
CP100100 mm diameter cable portIncludes silicone rubber bung
RP(150x100)Split rectangular port 150 x 100mmIncludes sealing plates
PPProduct protection thermostatSets upper and lower trip temperatures
W300300 mm square, heated multi-pane windowIncludes chamber interior light
ECDExtended cold dwellIncludes door frame heater and automatic de-frost
AD(-40)Air Drier (-40 dew point)Requires clean, dry compressed air supply

Custom Non-Magnetic Enclosure with separate Slimline-ACU

Compact Modular Enclosure for use with separate Slimline-ACU

Custom Enclosures datasheet PDF.

For more info please call 01453 828 642 or email sales@sharetree.co.uk.

Key Advantages
Adaptable and Modular Designs

Enclosures can be constructed as single piece or modular to suit the test environment and make installation simple.

Benchtop to Walk-In Sizes

Custom enclosures sizes to suit all applications. For large enclosures, the Air-Conditioning Unit (ACU) can be mounted on one wall to provide the higher air volumes required for larger interiors.

Fully Insulated and Sealed

To minimise condensation and/or ice build-up.

Robust Construction

To improve the life of the enclosure, especially modular ones, the construction is designed to be robust using stainless steel.

Extensive range of Options

Including windows, standard and specially designed ports, interfaces for Shakers and Slip Tables, glove ports, internal lighting, ATEX rating and many more.
